Setting up a new SSD for Windows 10 can seem like a daunting task, but it’s easier than you think. Basically, you need to insert the SSD into your computer, format it, and then install Windows 10. This guide will walk you through each step to help your computer run faster and more efficiently.
How to Set Up New SSD Windows 10
Ready to make your computer super speedy? Follow these steps to set up a new SSD with Windows 10. This will involve installing the SSD, formatting it, and then installing Windows 10.
Step 1: Insert the SSD
Turn off your computer and unplug it. Open the case and insert the SSD into an available slot.
Make sure you ground yourself to avoid static electricity damaging your components. Look for an empty drive bay or M.2 slot, depending on your SSD type. Secure the SSD with screws if necessary.
Step 2: Connect the SSD
Connect the SSD to your motherboard using a SATA cable or the appropriate connector.
For SATA SSDs, you’ll need a SATA cable and a power cable. M.2 SSDs just slide into the slot. Secure all connections to ensure your SSD communicates with your system properly.
Step 3: Close the Case and Power On
Close the computer case and plug your computer back in. Turn it on.
After reconnecting power, boot your computer. It might take a few moments for your system to recognize the new SSD.
Step 4: Access Disk Management
Press Win+X and select Disk Management to open the tool.
Disk Management is where you’ll format your new SSD. Here, you can also check if your SSD is recognized correctly by the system.
Step 5: Initialize the SSD

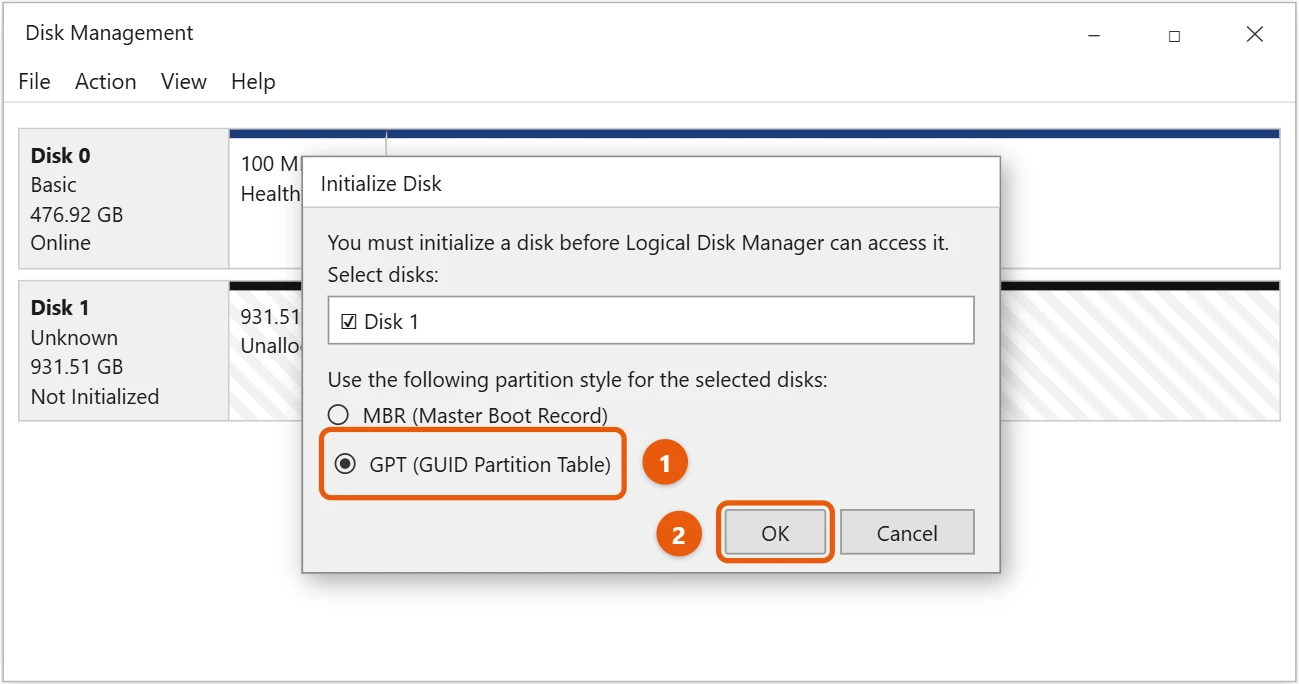

In Disk Management, find your new SSD. It will likely appear as "Unallocated." Right-click and select "Initialize Disk."
Choose GPT (GUID Partition Table) for modern systems. This step prepares the drive for formatting and use.
Step 6: Create a New Volume

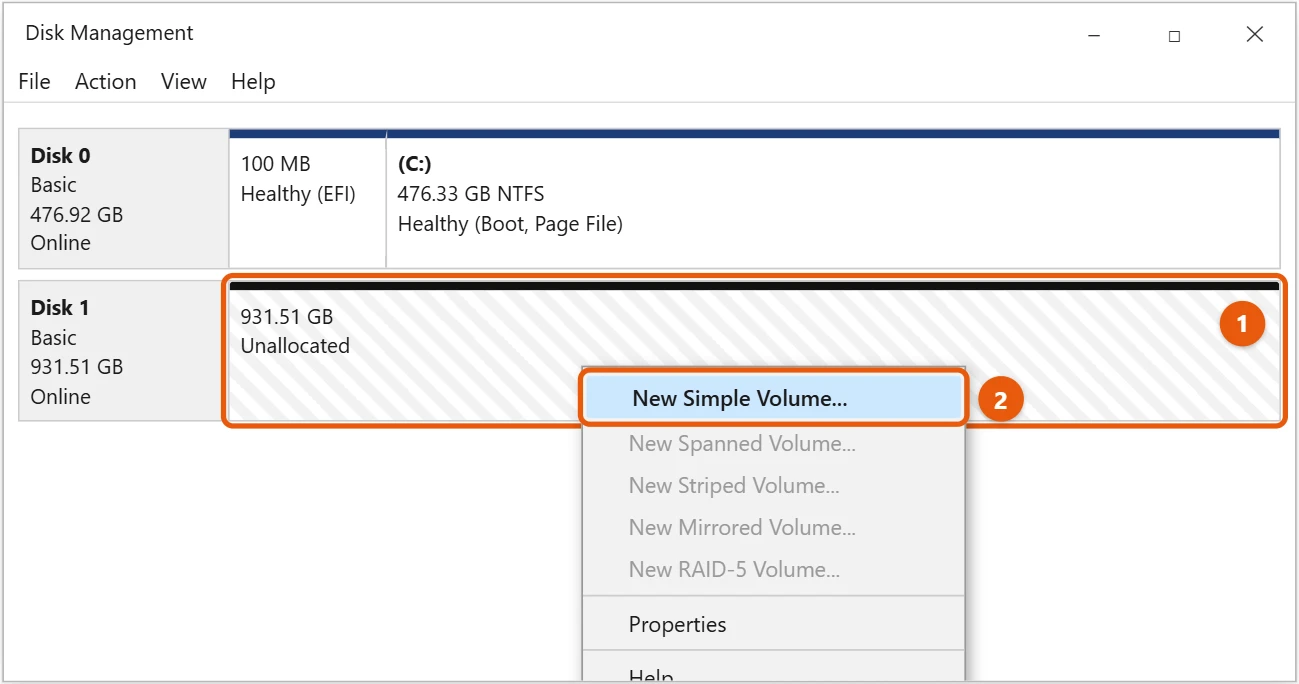

Right-click on the unallocated space of your SSD and select "New Simple Volume." Follow the wizard’s instructions.
Assign a drive letter and choose the NTFS file system. This process formats the SSD so it’s ready to store data.
Step 7: Install Windows 10
Insert your Windows 10 installation media (USB or DVD) and restart your computer. Boot from the installation media and follow the on-screen instructions.
Choose the SSD as the installation drive. This step might take a while as Windows 10 installs and configures itself on your SSD.
Once everything is done, your computer should boot up much faster, and programs should load in the blink of an eye.
Tips for Setting Up New SSD Windows 10
- Backup Your Data: Before starting, make sure you back up important data from your old drive.
- Update Firmware: Check if your SSD has any firmware updates; sometimes they improve performance and stability.
- Enable AHCI Mode: Ensure your BIOS is set to AHCI mode for better SSD performance.
- Clone Old Drive: If you don’t want to reinstall Windows, consider cloning your old drive to the new SSD using software like Macrium Reflect.
- Use TRIM Command: Ensure Windows 10 uses the TRIM command, which helps maintain SSD performance over time.
Frequently Asked Questions
Do I need to reinstall Windows 10 on my new SSD?
It’s recommended for the best performance, but you can also clone your existing installation.
What is the difference between GPT and MBR?
GPT is more modern and supports larger drives and more partitions, while MBR is older and more limited.
Can I use an external SSD for Windows 10?
Yes, but it won’t be as fast as an internal SSD due to connection speed limitations.
How do I know if my SSD is recognized?
Check in Disk Management. If it appears there, it’s recognized by your system.
Do I need any special tools to install an SSD?
Usually, just a screwdriver and a SATA cable if it’s a SATA SSD. M.2 SSDs may need a small screw for mounting.
Summary
- Insert the SSD.
- Connect the SSD.
- Close the case and power on.
- Access Disk Management.
- Initialize the SSD.
- Create a New Volume.
- Install Windows 10.
Conclusion
Setting up a new SSD with Windows 10 can breathe new life into your computer. Follow these steps, and you’ll be speeding through your tasks in no time. Remember, having an SSD can significantly boost your computer’s performance, making it almost feel like new. For further reading, consider looking into optimizing Windows 10 for SSDs or exploring SSD health monitoring tools. Now you’re all set—go ahead and enjoy your faster, more efficient PC!
